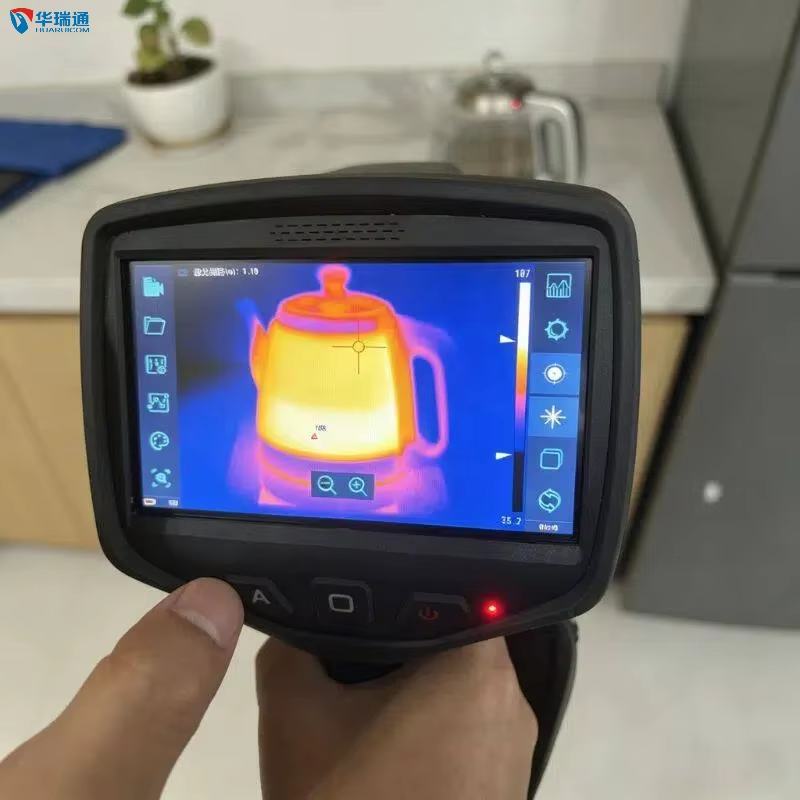

HRC-KT384 Handheld Infrared Thermal Imager for Firefighters

The HRC-KT384 fire-fighting infrared imager is a newly designed handheld tool-type infrared thermal imager with a resolution of 384x288 pixels. The product consists of an infrared camera lens, an infr

Overview
Parameters
Applications
Download

I. Product Overview:

The HRC-KT384 fire-fighting infrared imager is a newly designed handheld tool-type infrared thermal imager with a resolution of 384x288 pixels. The product consists of an infrared camera lens, an infrared imaging detector assembly, a visible light imaging module, a laser module, an LCD display, a memory card, a rechargeable battery, and a hardware and software processing system. This infrared thermal imager provides fast, accurate, and convenient temperature measurement, is robust and durable, and is suitable for various fault prevention, detection, and maintenance.

II. Product Features:

1. Automatic or manual control of color scale temperature range

2. °C, °F, and K measurement units

3. 11 selectable languages

4. Hottest point measurement

5. Coldest point measurement

6. Measurement at 4 movable points

7. 11 selectable color scales

8. 3-zone temperature measurement

9. 2-line temperature measurement

10. High temperature alarm setting

11. Background temperature correction

12. 2x digital zoom

13. Freeze current image

14. Video output - NTSC or PAL

15. TF card image storage

16. CMOS visible light image and storage

17. Voice annotation

18. Isothermal alarm

19. Temperature correction

20. Built-in emissivity selection table for common materials

Product Specifications:

Item	KT384XF
Detector Resolution	384×288
Operating Band	7.5-14μm
Detector Material	Polycrystalline Silicon
High Temperature Resistant Material	PPSU Silicone Rubber / Alumina, etc.
Lens	48° × 36° / Germanium Lens / Diamond Coating
Spatial Resolution	2.1mrad
Temperature Resolution	60mK (0.03℃)
Thermal Image/Video	.jpg (includes full temperature data) & .264 Video
Infrared Video Recording Duration	Continuous Recording 4 Hours / Up to 16 Hours
Package Class	lP67
Drop Test	2-Meter Drop Resistance
Display	4.3-inch Sunlight-Visible Display / 640*480 Pixels / LCD Material
Weight	1.1kg (including battery)
Depth of Field	0.5m to Infinity
Compliance with National Standards	Complies with GA/T 635-2006 Firefighting Infrared Thermal Imager Standard
Temperature Measurement Range (Optional)	-40℃ ~2000℃ / Automatic Range Switching
Storage Method	32G High-Speed Flash Memory Card (can store approximately 4000+ infrared images)
Operating Duration	<80℃ Long-Term Operation / Can Operate for 30 Minutes at 80℃ /120℃ for 10 minutes /260℃ for 5 minutes
Battery Type	Removable rechargeable explosion-proof lithium battery
Battery Working Time	4 hours per battery / 3 batteries included
Temperature Measurement Accuracy	±2℃ or ±2% of the reading
Image Frame Rate	30Hz or 60Hz
Display Mode	10 color modes
Digital Zoom	2x or 4x speedup
Analysis Software	Equipped with static infrared image analysis software
Laser Indicator	Dual laser indicator for target location
4G Wireless Image Transmission	Real-time image transmission to mobile app for viewing
Standard Accessories	Main unit x1, Charger x1, Battery x3, Card reader x1, SD card x1 (32G), Instruction manual x1, Analysis software x1, Protective case x1
