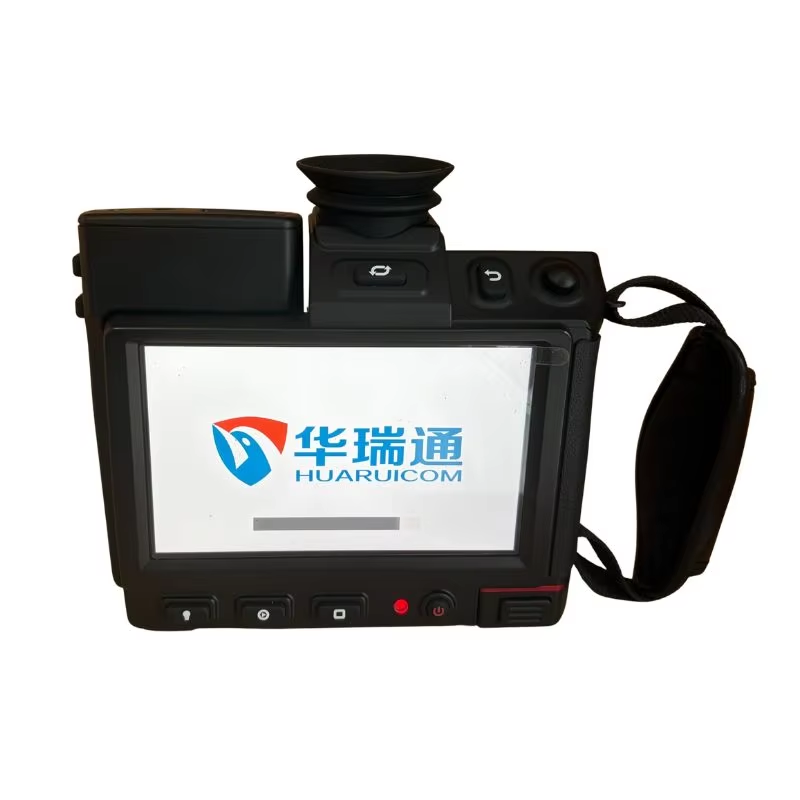

Portable Infrared Thermal Imager HRC-KT1024

The HRC-KT series infrared thermal cameras feature a brand-new, ergonomic design and offer superior ruggedness, capable of withstanding a 2-meter drop. Thermal imaging resolutions ranging from 160×120

Overview
Parameters
Applications
Download

I. Product Overview:

The HRC-KT series infrared thermal cameras feature a brand-new, ergonomic design and offer superior ruggedness, capable of withstanding a 2-meter drop. Thermal imaging resolutions ranging from 160×120 to 1024×768 are available, complemented by a 5-megapixel visible-light camera and a large, sunlight-readable display that supports thermal-visible image fusion. The series supports multiple file formats—including .jpg and .png with embedded full-temperature data, as well as the State Grid standard format. Its real-time raw image transmission capability plays a vital role in scientific research and industrial control applications.

II. Product Advantages:

1. Excellent image quality and accurate temperature measurement

2. 5-inch large screen design, high screen brightness, clear visibility during the day, temperature measurement accuracy guaranteed ±1℃~±1%

3. Intelligent automatic renaming, real-time intelligent image diagnosis

4. The thermal imaging file can be automatically named according to the device name specification according to the selected device name, and the results of the intelligent diagnosis at that time can be displayed in real time on the screen of the thermal imager.

5. Automatic navigation shooting, automatic switching of temperature measurement range

6. It can shoot according to the preset shooting sequence or randomly. The shooting and acquisition speed is more than 3 times faster than that of conventional thermal imaging cameras. For processes involving changes from low temperature to high temperature, the range can be automatically switched according to the target temperature.

7. Precise autofocus and multi-band fusion imaging

8. Supports automatic focusing, with fast focusing speed and high accuracy. It combines infrared and visible light to display the target outline more clearly.

III. Product Features:

1、Operates at 260°C high temperature, IP67 waterproof, 2-meter drop resistant, safety battery, suitable for fire rescue in various harsh environments.

2、Fully compliant with GA/T 635-2006 national standard.

3、Temperature measurement accuracy 2°C ± 2%, temperature range -40°C to +200°C, complete hardware and software functions, suitable not only for fire rescue but also for fire detection.

4、Multiple scene false color, unparalleled image effects, helping firefighters navigate easily in smoky environments (4.3-inch sunlight-readable large screen + multiple unique image processing patent technologies).

5、Thermal imaging video storage function, capable of saving over 10,000 images or 16 hours of video files, which can be played back and analyzed on a computer.

6、Supports optional portable transmission terminal, allowing on-site images to be directly transmitted to the command center, facilitating command personnel in directing rescue efforts.

Product Specifications:

HRC-KT1024 Handheld Infrared Thermal Imager
Detector resolution	1024*768 pixels
Temperature resolution	<0.05℃(@30℃)
Spatial resolution	0.65mrad (24° lens)
Detector material	Polycrystalline silicon or vanadium oxide
Operating band	8 - 14μm
Standard lens	24°
Optional lens	48°, 12°, 6°, etc.
Infrared lens change method	Direct card replacement (improves energy transmission rate)
Depth of field	0.5m to infinity (24° lens)
Image frame rate	30Hz
Standard temperature measurement range	-20℃ ~ 150℃ (low temperature range), 0℃ ~ 450℃ (medium temperature range)
Optional temperature measurement range	+300℃ ~ +650℃, +300℃ ~ +2000℃, other ranges (high temperature range)
Temperature measurement accuracy	Built-in blackbody automatic calibration, unaffected by changes in the working environment, repeatability meets the greater of ±2℃ or ±2% of the reading.
Digital camera	Built-in 5MP digital camera with LED light
Laser	Support
Lens focusing method	Manual, automatic, electric
Display screen	5-inch sunlight-readable display screen, 1024*768 pixels
Touchscreen	Capacitive touch screen
Palette	10 color palettes including Iron Red/Grayscale/Reverse Iron Red/Reverse Grayscale, etc.
Point and line area temperature measurement settings	It can simultaneously support up to 10 points, 10 boxes, and 5 lines, including maximum/minimum/average values.
Full screen highest/lowest temperature	Supports automatic capture of the highest/lowest temperature across the entire screen.
Image Adjustment	Automatic/manual; linear or columnar; capable of locking maximum, minimum, or temperature range.
Digital zoom	x1,x2,x4,x8
Picture in picture	Displaying infrared image regions on visible light images
Image fusion	Support
Isotherms	Support
Temperature difference	Automatically calculate the temperature difference between each temperature measuring frame
Laser ranging	Supports direct display of target distance on the screen
Text annotation	Select a text annotation from the preset list to edit in the thermal imager.
Voice annotation	Supports voice annotation, which is stored along with the image.
WIFI	Transmit infrared images to mobile phone/computer via WIFI
4G	Remotely transmit images to mobile phones/computers in real time via 4G.
Bluetooth	Supports Bluetooth headsets
GPS	Built-in GPS automatically adds location information to the image.
Super-resolution	Increase the number of pixels to 4 times the original amount.
Optical device transmission correction	Manual/Automatic, based on signals emitted by internal sensors
Emissivity Correction	Automatic, based on emissivity input values
Atmospheric transmission correction	Automatic, based on input values of distance, atmospheric temperature, and relative humidity.
Alarm method	Automatically trigger audible and visual alarms when the set temperature value is above or below the set temperature.
Storage method	32GB high-speed SD card (can store approximately 10,000 infrared images)
Image data storage	Intelligent Database Management
Infrared image format	State Grid standard format & .jpg (containing full temperature data) & .png (containing full temperature data)
Visible light image format	jpg/png
Infrared video format	H.264 video and full-temperature data infrared video stream are stored to an SD card.
Data Interface	Data can be downloaded and uploaded to the power supply service system via a direct connection using a data cable with the power IoT mobile phone.
Automatic file naming	When operating the thermal imager, the thermal imaging files can be automatically named according to the device name specifications based on the selected device name. In particular, the files include device information keywords, which facilitates batch processing, conforms to the format requirements of management systems such as PMS, eliminates the need for manual organization, and facilitates efficient management.
Intelligent Diagnosis	The thermal imager's screen displays the real-time results of the intelligent diagnosis. The diagnostic rules can be pre-determined based on power guidelines or strictly configured according to the user's requirements, ensuring the accuracy of the diagnosis. The results are intuitive and easy to understand, preventing potential equipment hazards from being overlooked due to human factors.
Video output interface	Micro HDM interface
Battery Type	Removable rechargeable lithium battery
Power supply voltage	DC 12V
Thermal imaging weight	1.1kg
Protection level	IP56
Battery life	At 25°C, for general use >3 hours
