Helmet-mounted multi-functional low-light night vision device
  • Helmet-mounted multi-functional low-light night vision device
  • Helmet-mounted multi-functional low-light night vision device

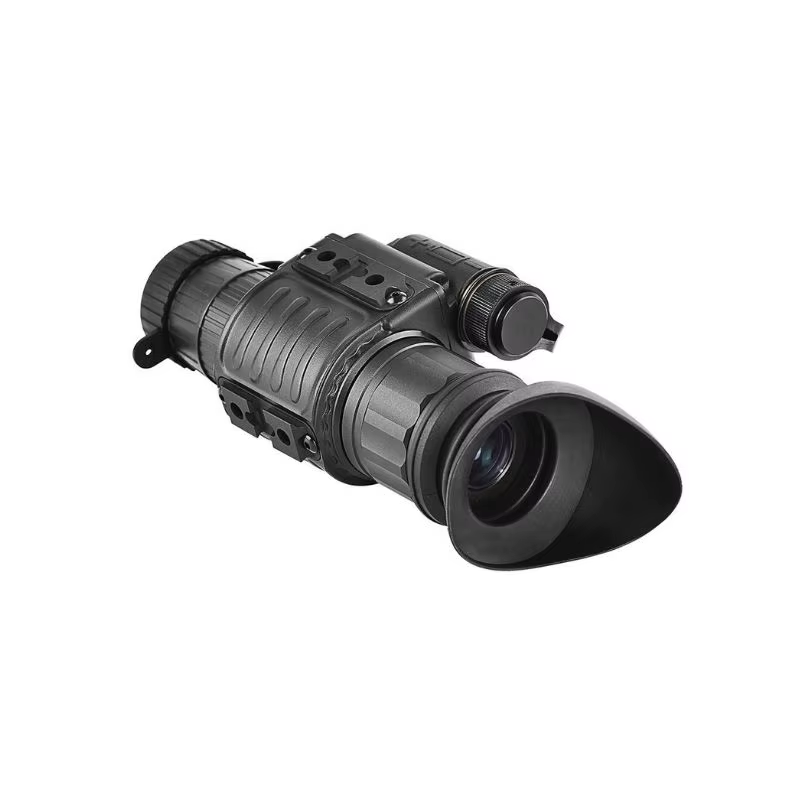

Helmet-mounted multi-functional low-light night vision device

Helmet-mounted multi-functional low-light night vision device

  • Overview
  • Parameters
  • Applications
  • Download
  • I. Product Features:


    1、Ultra-low-light clarity - 3rd-gen tube, up to 72 lp/mm

    2、Long-range - up to 1000m, with 1X/4X/5X magnification options

    3、Lightweight & rugged - only 300g, helmet-mountable, -40℃ to +40℃

    4、80h runtime - non-stop operation


  • Product Specifications:


    HRC-YMK Helmet-mounted multi-functional low-light night vision device
    Functions Specifications
    Image tube level Third generation
    Zoom 1X/4X/5X
    Observation distance 200-1000m
    Viewing angle 40/13/8 degree
    Objective lens focusing range 0.25~~∞
    Eyepiece focusing range (diopter) +5~~-5
    Power supply voltage 3.6V (CR123A)
    Working Hours
    (Infrared lighting off)
    80 hours
    Working hours
    (Infrared lighting on)
    40 hours
    Weight 300/550/610
    Operating temperature -40~~+40
    Relative humidity at 25 98%
    External dimensions (mm) 1x 122x42x62
    External dimensions (mm) 4x 184X60X78
    External dimensions (mm) 5x 165X84X90
    Cathode type 18mmGaAs
    Cathode sensitivity ≥1800
    Resolution, lp/mm 63-72
    Gain fl/fcd 45000-55000
    Segment-to-noise ratio 21-25
    Sensitivity ≥1500
    Image tube life (hours) 12000
    Service life (hours) 15
