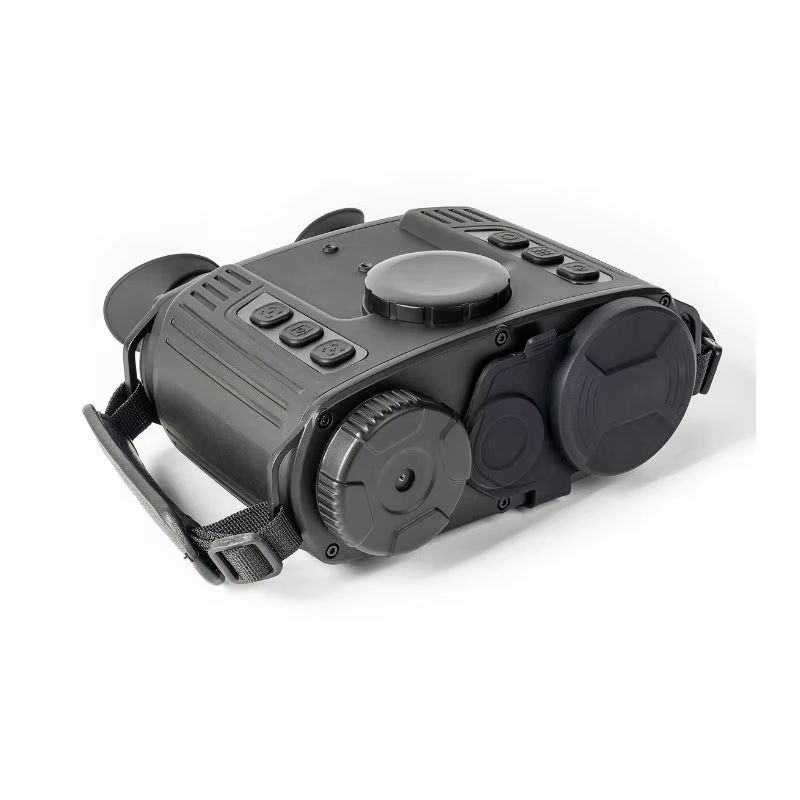

Binocular Fusion Thermal Imager

The integrated technology such as ultra-low illumination COMS,infrared thermal imager, electronic compasses, GPS, video compression storage and control are used for the binocular fusion thermal image

Overview
Parameters
Applications
Download

I. Product Overview:

The integrated technology such as ultra-low illumination COMS, infrared thermal imager, electronic compasses, GPS, video compression storage and control are used for the binocular fusion thermal imager (hereinafter referred to the thermal imager), which can be used for tactical reconnaissance day and night, monitoring and identifying camouflage targets. It is characteristic of a small size, convenience in taking and good adaptation to environments. The thermal imager is easy to carry by a single person for front observation, and is also suitable for setting up a fixed observation station for observation, day and night observation, photographing and video recording of targets. It can be widely used in patrol, investigation, law enforcement, anti smuggling, anti drug, forestfire prevention, emergency search and rescue and other occasions.

II. Product Features:

1、It integrates ultra-low light CMOS, infrared thermal imager, electronic compass, GPS, video compression storage, and control technologies;

2、It can be used day and night for tactical reconnaissance, surveillance, and identification of camouflaged targets;

3、It features small size, easy portability, and good environmental adaptability;

4、It is convenient for single-person transport for forward observation;

5、It is also suitable for setting up observation posts, for day and night observation, photography, and video recording of targets;

6、It can be widely used in various occasions such as patrol, reconnaissance, law enforcement, anti-smuggling, drug enforcement, forest fire prevention, and emergency search and rescue.

Product Specifications:

Product model	HRC-S800
Infrared
Detector type	Amorphous silicon uncooled infrared focal plane
Resolution	640×512
Pixel size	12μm
Field angle	8.8°×7.04
Working band	8-14um
NETD	<50mk@25℃,@f/1.0
Focal length	50mm
Frame rate	≤50Hz
Focus mode	Electric focus
Detection distance
Characters (1.7mx0.5mx0.3m)	3333m	4722m
Vehicles (4.5mx2.0mx1.5m)	8823m	12500m
Identification distance
Characters (1.7mx0.5mx0.3m)	883m	1180m
Vehicles (4.5mx2.0mx1.5m)	2205m	3125m
Shimmer
Detector type	Ultra-low illumination CMOS
Resolution	1920x1080
Pixel size	4.0um
Focal length	35mm
Frame rate	≤30Hz
Focus mode	Focus free
Display
Display screen type	OLED
Resolution	1024x768
Display size	0.39 inches
Display screen mode	Infrared/shimmer/dual light fusion/picture in pictures
Electronic zoom	1×/2×/4×
Visual control	±4SD
Pseudo color	Rainbow, iron red, cold color, white hot, and black hot
Other functions
WIFI	2.4G image transmission
Electronic compass	Square angle display
Positioning	GPS/BD
Ranging
Ranging range	9m-5000m
Ranging accuracy	<400m, ±1m; >400m, 0.4%
Storage
Capacity	Built-in 16G eMMC (Note: the usable storage capacity is less than this value, because the system software occupies a certain space)
Shooting	Supported
Video recording	Supported
Picture/Video format	JPG/MP4
Interface
CVBS output	PAL system video output
USB interface	Export pictures and videos
External power supply	DC12/1A
Power supply
Detachable rechargeable lithium battery	3200mAhx2 (battery model 18650)
Battery charging mode	Standalone charging stand
Overall power consumption	≤6W
Endurance duration	≥4 hours
Operating/storage environment
Operating temperature	-20℃ to 50℃
Storage temperature	-30℃ to 70℃
Shock	≤30g
Protection leve	IP54
Overall dimension/Weight
Overall dimension	193.1mmx176.8mmx99mm
Weight	1.58kg (including batteries)
