I. Product Overview:

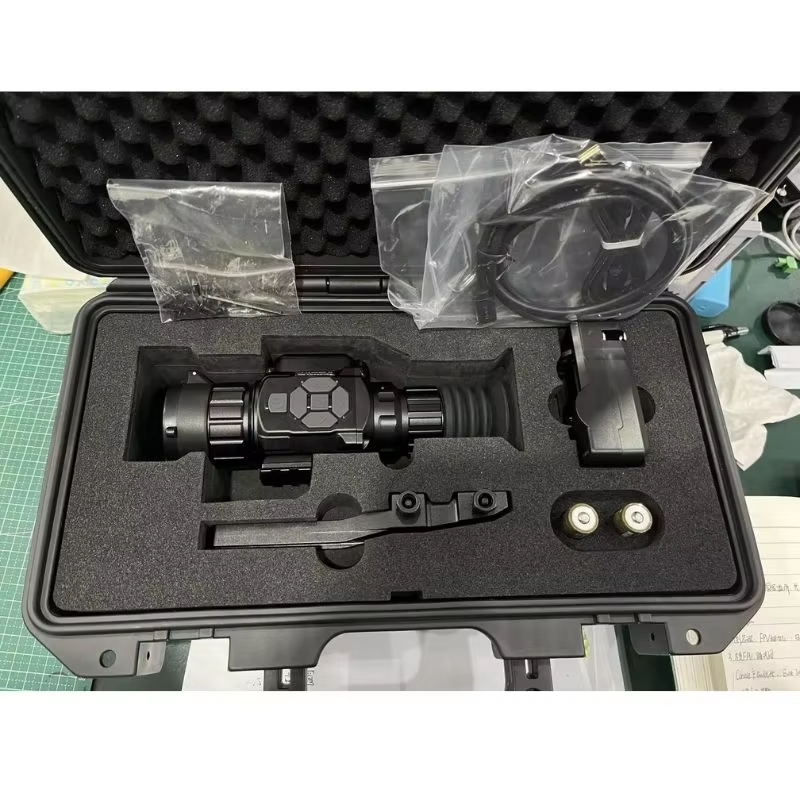

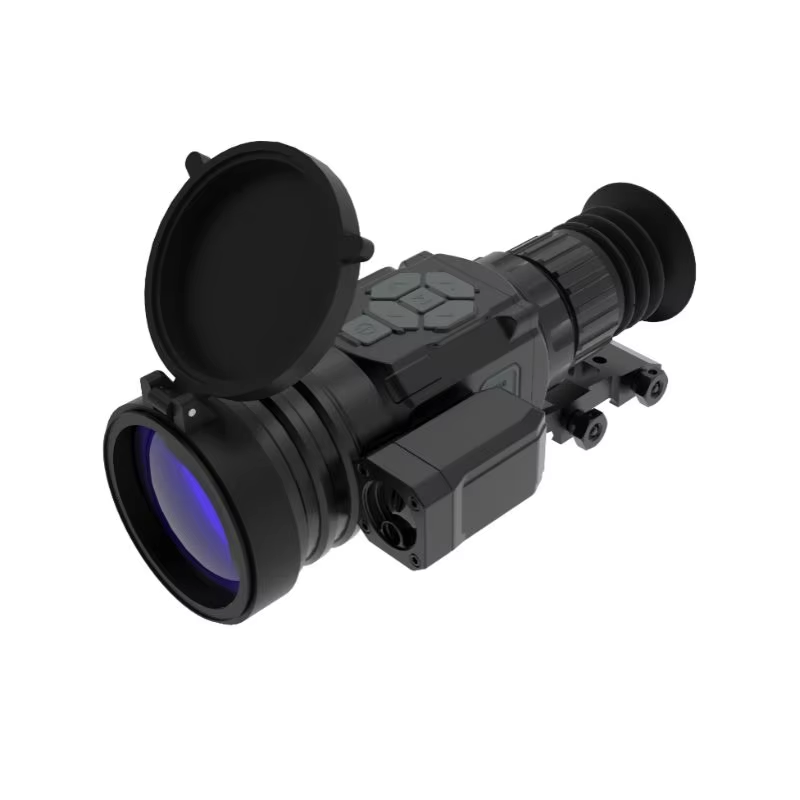

The HRC-S700 series is a small, lightweight thermal imaging night vision device that can operate continuously for more than 8 hours and can penetrate darkness, dust, smoke, fog and other conditions for observation and aiming in all weather conditions. This night vision device can simultaneously perform search, reconnaissance, aiming and shooting actions, making it an ideal choice for public security, armed police, anti-smuggling and anti-drug operations.
II. Product Features:
1、It integrates ultra-low light CMOS, infrared thermal imager, electronic compass, GPS, video compression storage, and control technologies;
2、It can be used day and night for tactical reconnaissance, surveillance, and identification of camouflaged targets;
3、It features small size, easy portability, and good environmental adaptability;
4、It is convenient for single-person transport for forward observation;
5、It is also suitable for setting up observation posts, for day and night observation, photography, and video recording of targets;
6、It can be widely used in various occasions such as patrol, reconnaissance, law enforcement, anti-smuggling, drug enforcement, forest fire prevention, and emergency search and rescue.
Product Specifications:
Product model
HRC-S700
Infrared
Detector type
Vanadium oxide non-cooled infrared focal plane
Resolution pixel
384x288
Pixel size
12μm
Focal distance
25mm
35mm
Angle of field
10.5°×7.9°
7.5°×5.7°
Working band
8~14μm
NETD
≤40mk@25℃,@F/1.0
Frame rate
≤50Hz
Focusing method
Manual focus
Detection range
Figure
1.7mx0.5mx0.3m
1181m
1653m
Vehicle
4.5mx2.0mx1.5m
3125m
4375m
Recognition distance
Figure
1.7mx0.5mx0.3m
295m
413m
Vehicle
4.5mx2.0mx1.5m
781m
1094m
Laser
Transmitting aperture
6mm
Receiving aperture
17mm
Range (building)
10m~1200m
Range accuracy (building)
<400m ±1m,>400m ±0.4%
Type of laser
905nm
Show
Display screen type
OLED
Resolution ratio
1440×1080
Display size
0.39 inches
Electronic zoom
1×/2×/4×/8×
Diopter regulation
±5SD
Pseudo color
Hot White, Hot Black, Hot Red, Rainbow, Iron Red, Cold
Hotspot Tracking
Support
Picture in picture
Support
Language
Chinese Simplified, Chinese Traditional, English, Russian, German
Memory
capacity
Built-in 16GB EMMC (the system occupies part of the space, the actual value is about 13.8G
Take a picture
Support
Picture recording
Support
Image/Video Format
JPG/MP4
Joggle
USB joggle
Charge/Export images and videos
Source
Removable rechargeable lithium battery
1400mAh×2 (18350 battery model)
General technical indicators
Total power consumption
≤1.8W
Duration of flight
≥5 hours
Working temperature
-20℃~+60℃
Storage temperature
-30℃~+70℃
Lash
≤1000G
Levels of protection
IP66
Size/Weight
Product size
196.5x96x66mm
Product weight
700g
