Home > Products > Night Vision Scope
I. Product Introduction:

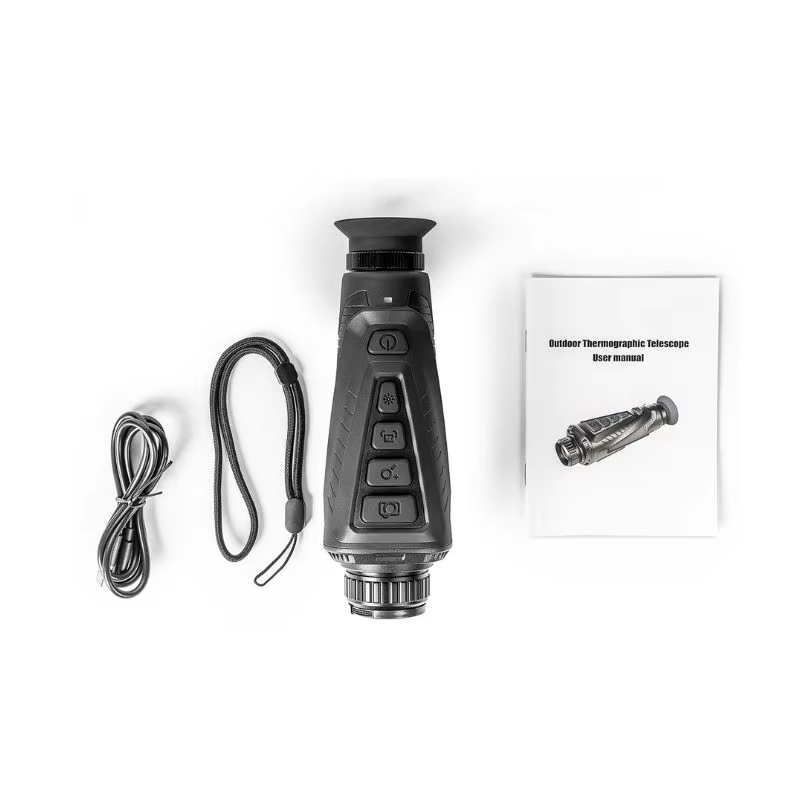

The HRC-S600 series of multi-functional infrared thermal imaging night vision observation and aiming devices is small in size and light in weight, can work continuously for more than 8 hours, and can be used in all weather conditions to observe and aim through darkness, dust, smoke, fog and other obstacles. This night vision device can simultaneously complete search, reconnaissance, aiming and shooting actions, making it an ideal choice for public security, armed police, anti-smuggling and anti-drug fields.
II. Product Features:
1、It integrates ultra-low light CMOS, infrared thermal imager, electronic compass, GPS, video compression storage, and control technologies;
2、It can be used day and night for tactical reconnaissance, surveillance, and identification of camouflaged targets;
3、It features small size, easy portability, and good environmental adaptability;
4、It is convenient for single-person transport for forward observation;
5、It is also suitable for setting up observation posts, for day and night observation, photography, and video recording of targets;
6、It can be widely used in various occasions such as patrol, reconnaissance, law enforcement, anti-smuggling, drug enforcement, forest fire prevention, and emergency search and rescue.
Product Specifications:
HRC-S600
Specifications
Infrared
detector
Detector type
Amorphous silicon uncooled
infrared focal plane
Resolution
384×288
Pixel size
17μm×17μm
Operating band
8~14μm
Performance
（NEDT)
＜40mk (50Hz, F/1, 300K)TFPA 25°C(± 5°C)
Performance
(Scene dynamic)
＞50°C (50Hz, F/1, 300K)TFPA 25°C(± 5°C)
Frame rate
60Hz
Infrared
objective
lens
Focus mode
Manual focusing
F coefficient
1.0
Effective
imaging surface
Φ8.2mm
Φ8.2mm
Focal length
25mm
35mm
Field angle
14.9°×11.2°
10.7°×8.0°
Focusing range
＞ 1.0m
＞ 1.0m
Wireless Network
Focal distance
22.0mm
Eye relief
30.8mm
Exit-pupil diameter
6mm
Visual adjustment
±4SD
Apparent magnification
12.5X
Display
Display screen type
LCOS
Resolution
1280×960
Display screen size
0.4 inch
System
function
Electron doubling
×2/×4
Color palette
White hot, black hot, rainbow, hot metal,
yellow saturation and bird watching mode
Brightness adjustment
10 levels
Contrast ratio adjustment
10 levels
Image detail mode
2 types and 5 levels
Photo taking
Supported
Camera shooting
Supported
Picture in pictures
Supported
WIFI
Supported
Hotspot tracking
Supported
Language
Chinese and English
Standby
Supported
Laser lamp
Supported
Lighting lamp
Supported
Detection
distance
Infrared
objective lens
25mm objective
lens
35mm objective lens
Human
≤1667m
≤2333m
Boar
≤1471m
≤2059m
Vehicles
≤2501m
≤3500m
Storage
Built-in memory
Standard configuration 16G
(supporting 16G/32G/64G/128G)
Image format
JPG
Video format
MP4
Interface
CVBS output
Supported, SMA base interface
USB interface
TYPE-C exporting pictures, videos
and battery charging function
Power
supply
Non removable
rechargeable
lithium battery
18650/3500mAh
Overall power supply
≤2W
Endurance time
≤5.5 hours
Operating/
Storage
environment
Operating temperature
-20℃ ~ +50℃
Storage temperature
-30℃ ~ +60℃
Impact resistance
≤30g
Protection level
≤IP65
Overall
dimension/
Weight
Overall dimension
187*67*67mm
198*67*67mm
Weight
503g±5g
513g±5g
